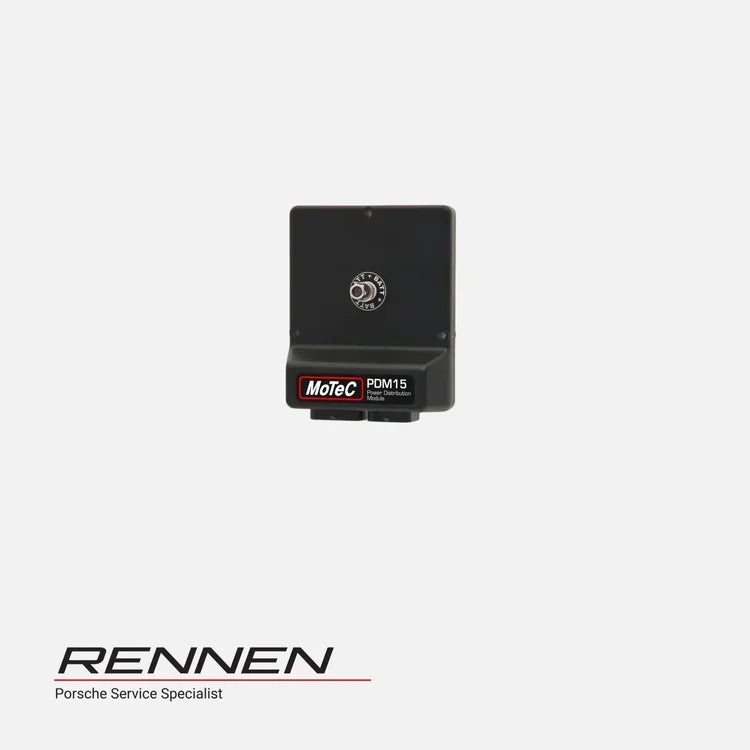

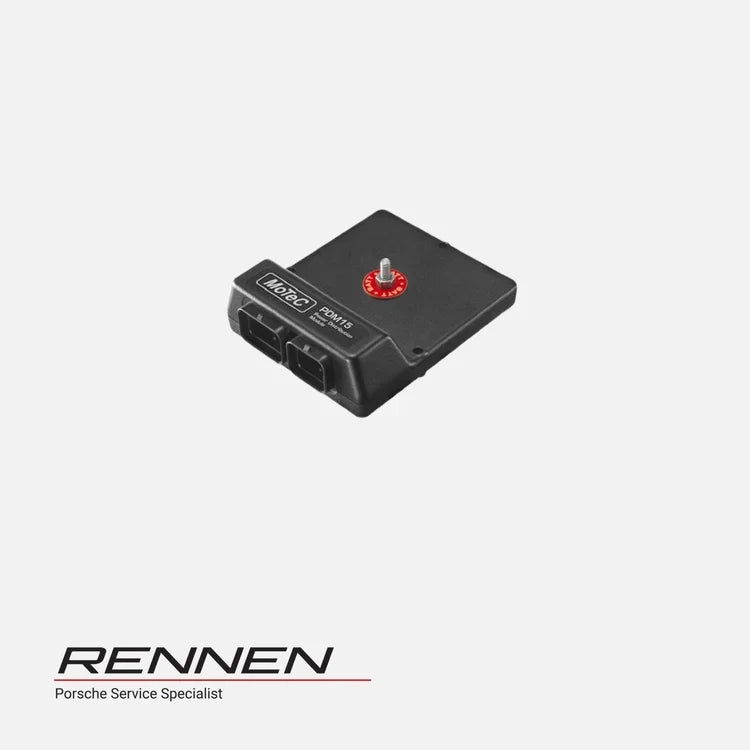

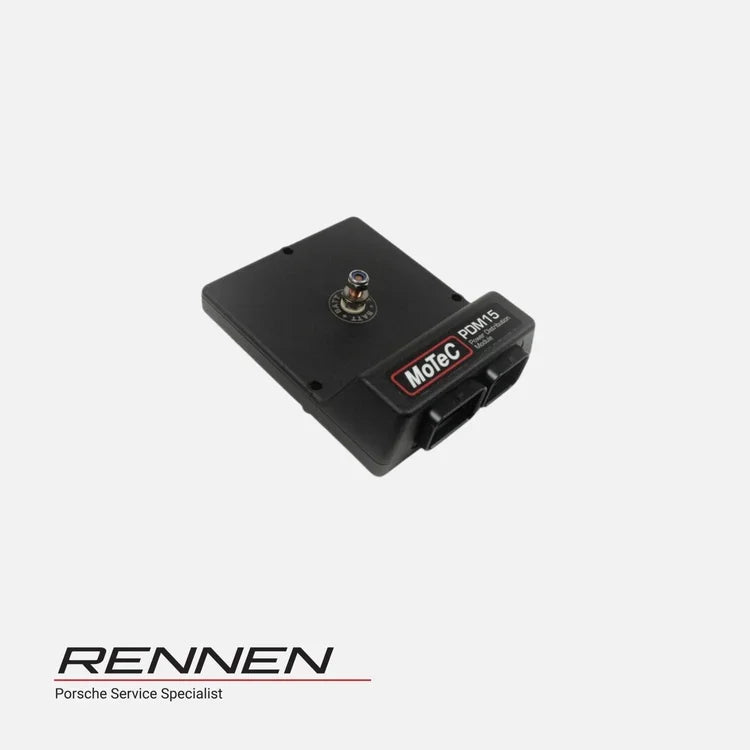

PDM15 - POWER DISTRIBUTION MODULE

Product No. 14104

This sophisticated 15-output electronic power distribution module replaces conventional relays, fuses, and circuit breakers for managing power to lights, motors, ECUs, data loggers, and more—simplifying wiring and boosting reliability.

Key Features & Capabilities

• Each output (8 × 20 A and 7 × 8 A) offers programmable over-current, short-circuit, and thermal protection, helping to safeguard vehicle systems.

• Outputs can be programmed in 1 A steps and controlled using switch inputs, CAN messages, or custom logic, with support for up to 200 logic operations (e.g., Flash, Pulse, Toggle, AND/OR).

• 16 switch inputs supporting voltages between 0–51 V (resolution 0.2 V), ideal for triggers and monitoring.

• Continuous diagnostic feedback (input/output voltage, current, error status, temperature) is available via CAN messages.

Specifications at a Glance

• Outputs: 8 × 20 A (20 A cont., 115 A peak); 7 × 8 A (8 A cont., 60 A peak)

• Switch Inputs: 16, 0–51 V range, 0.2 V resolution

• Communications: CAN bus for configuration, control, and diagnostics

• Connectivity: 1 × 34-pin waterproof, 1 × 26-pin waterproof, 1 × M6 stud

• Dimensions: & Weight ~108 × 128 × 39 mm, magnesium housing, ~260 g

• Protection: Reverse battery and load-dump protection for module and peripherals

Software & Configuration

The PDM is configured using PDM Manager software via CAN (UTC adapter required). It allows complete setup of inputs, outputs, logic rules, firmware updates, and real-time diagnostics.

Installation Notes

• Mount the module in a ventilated area—internal temperatures can reach 110 °C. Temperature monitoring and cooling strategies (airflow, heat sinking) are advised.

• Ensure proper wiring of the CAN bus with necessary termination resistors and follow MoTeC guidelines for battery feed and grounding.
