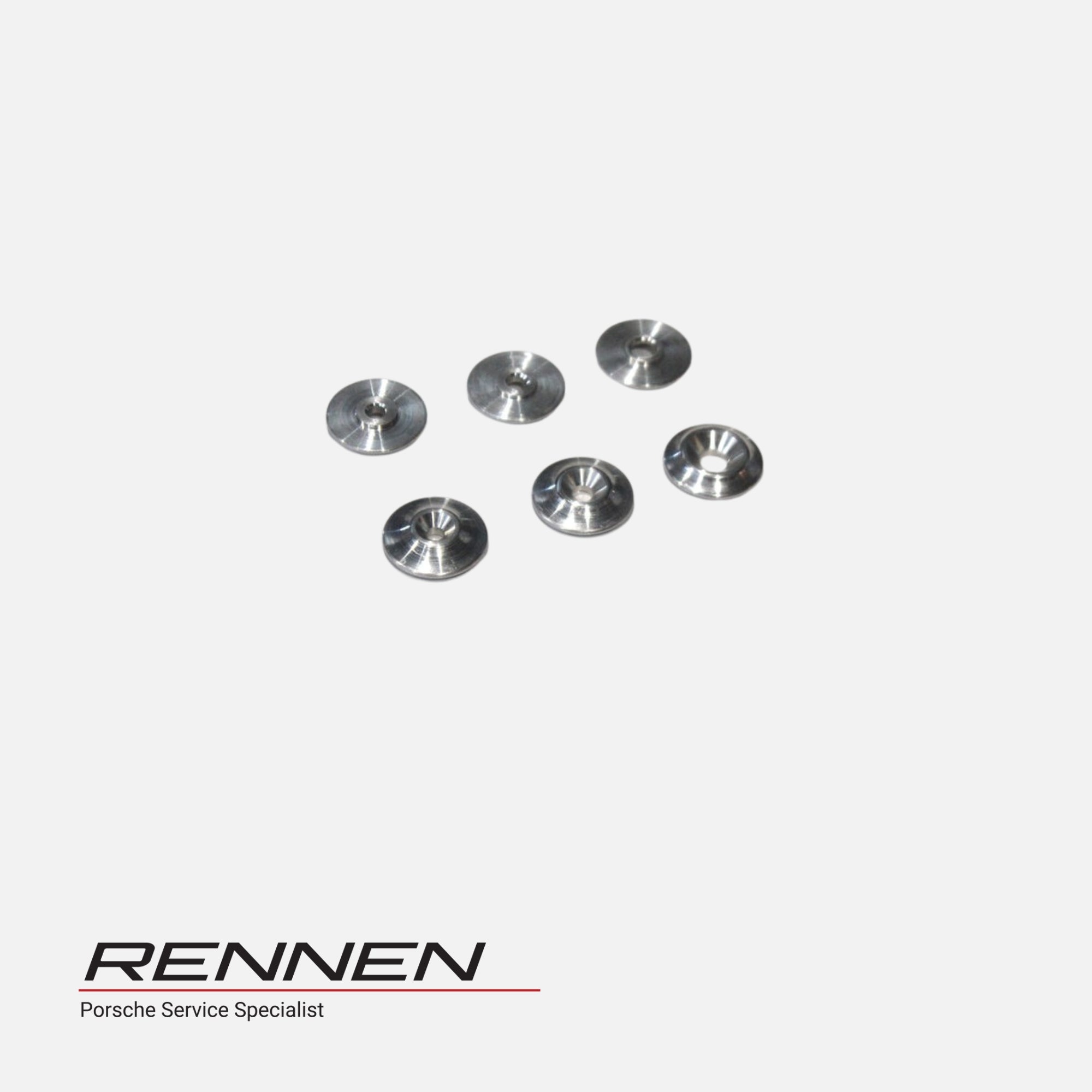

Aircraft style Load Spreading Washers - with locating shoulder - 10 Pack PE-014 range

The PE Racing Load Spreading Alloy Washers are engineered to strengthen panel connections and reduce wear on mounting holes—especially when working with softer materials such as composites, plastics, or thin metals.

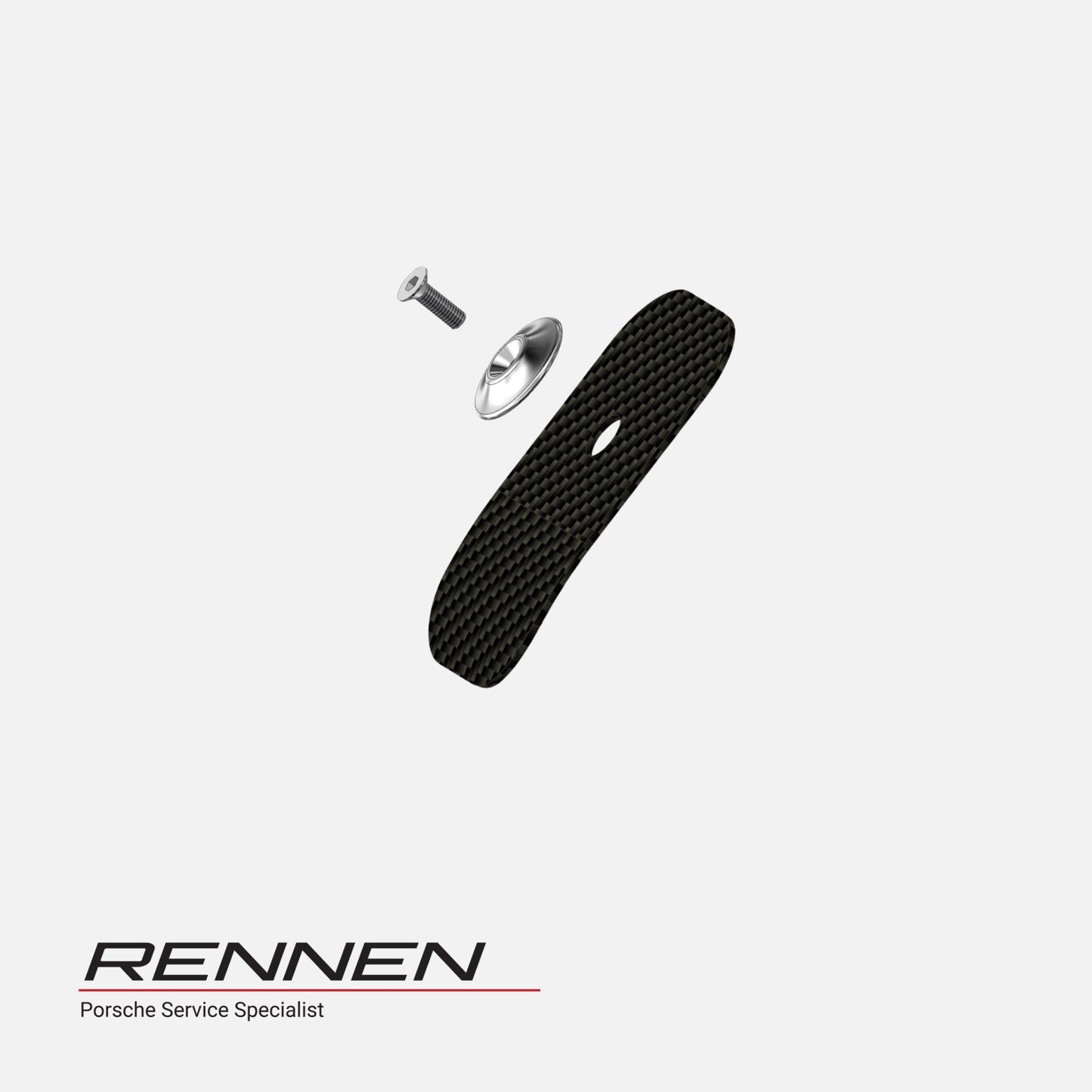

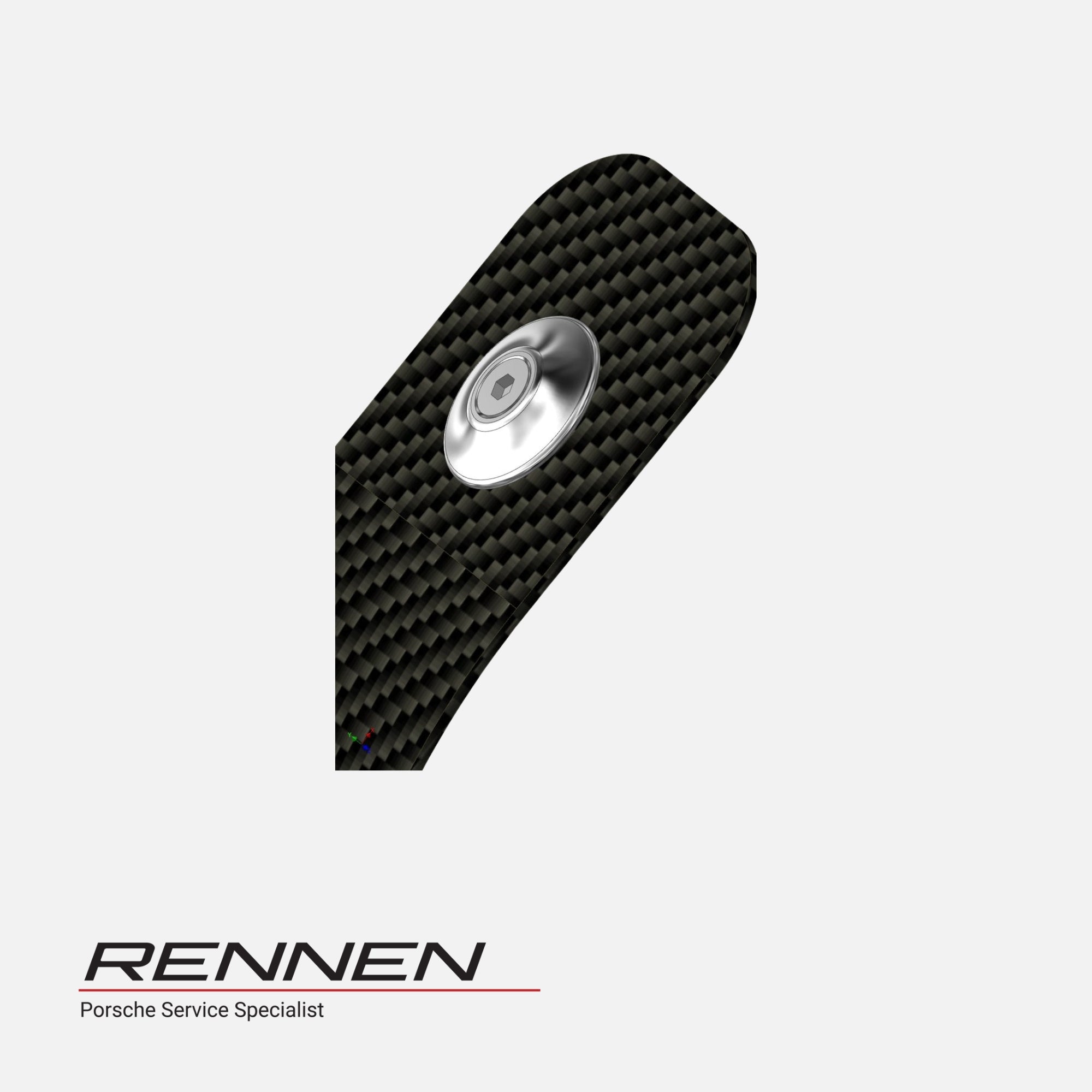

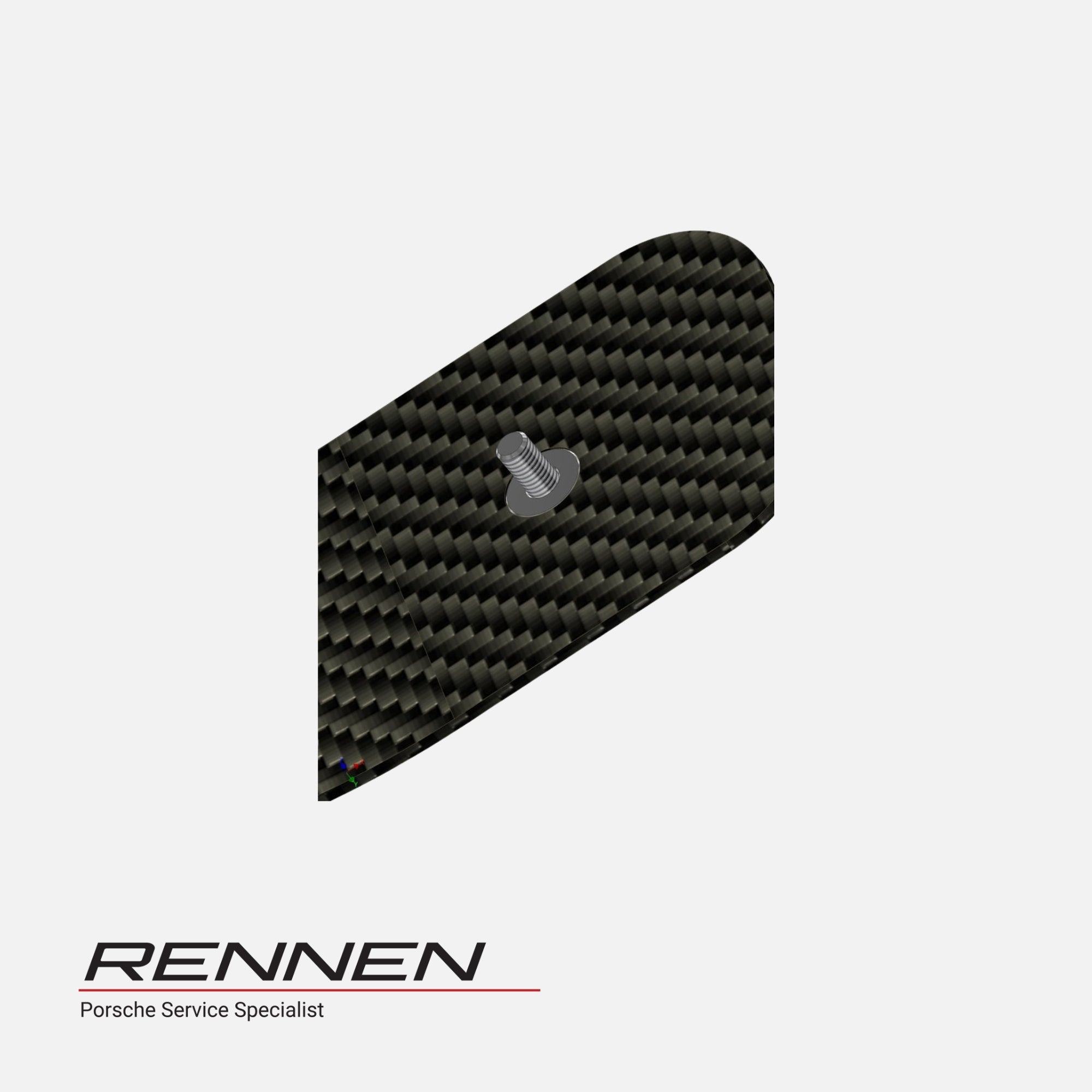

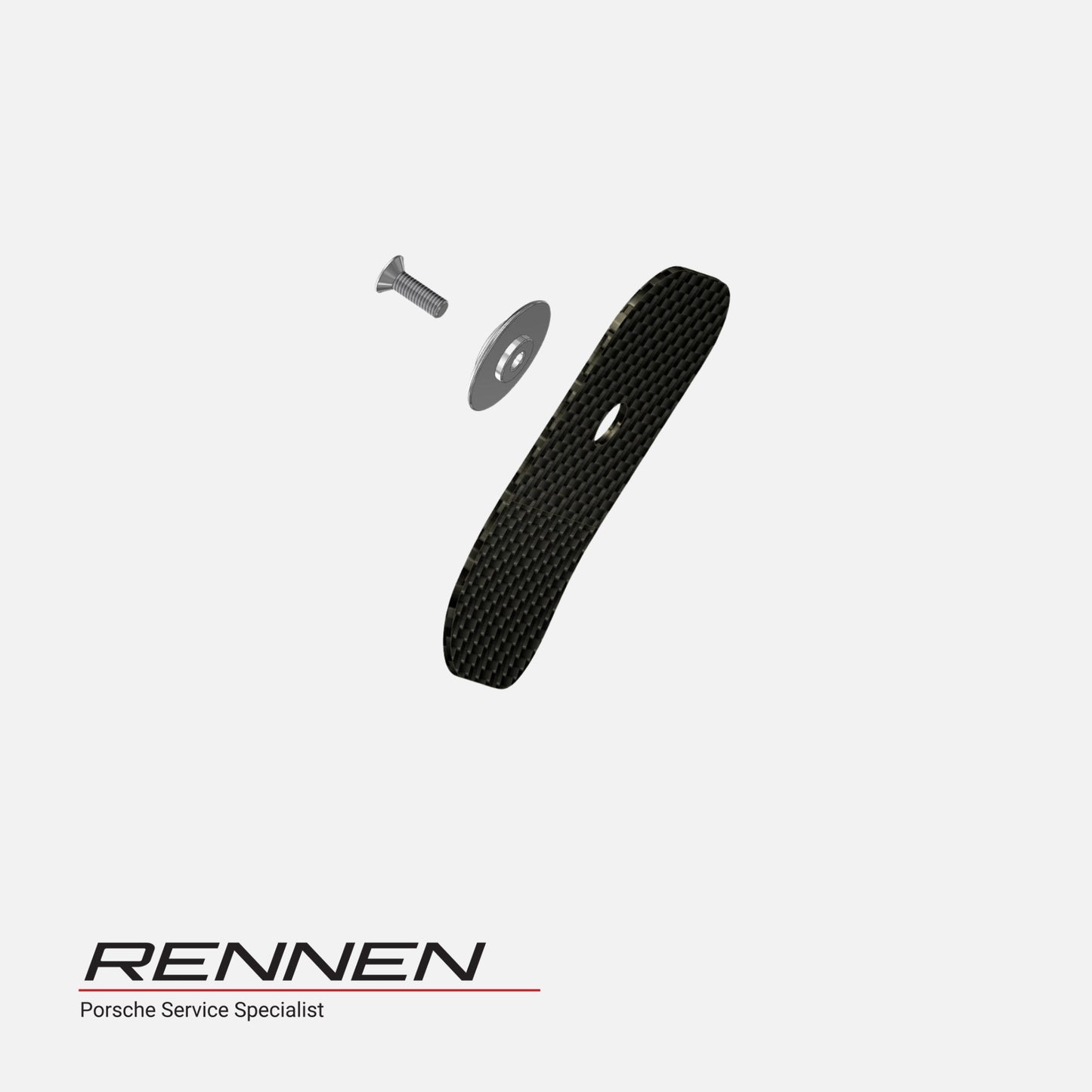

Each washer features a 12mm diameter × 2mm deep locating boss on the underside, which engages with the panel material. This design ensures the connection is supported by the larger shoulder diameter, preventing direct bolt contact with the panel surface. The result: stronger, longer-lasting connections with reduced hole damage.

Simply drill a 12mm hole to accommodate washer sizes M5, M6, or M8.

Specifications:

Material: Aircraft-grade alloy (6061-T6)

Overall Diameter: 30mm

Height Above Panel: 5mm

Spigot Depth: 2mm

Weight: Approx. 6 grams each

Finish: Available in anodised or mill finish

Why Use Load Spreading Washers?

In many motorsport and engineering applications, standard fasteners can cause vibration and twisting forces that wear out panel holes over time. These load-distributing washers prevent damage by spreading the clamping force and protecting the hole from fastener thread or shank contact.

Suitable For:

Race cars

Motorcycles

Go-karts

Aircraft

General motorsport and engineering applications
