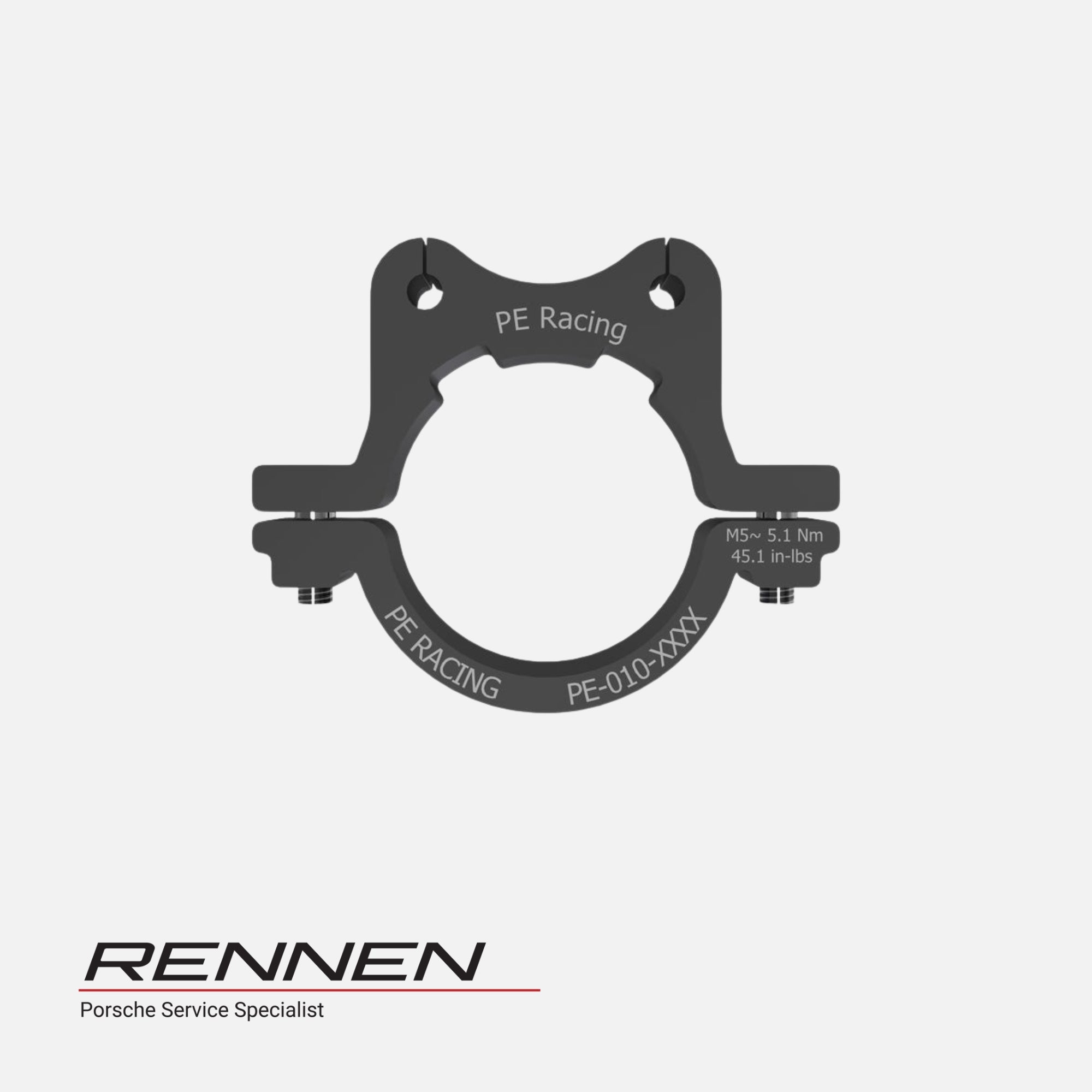

Tube Clamp Mounting Brackets (PE-010 Range)

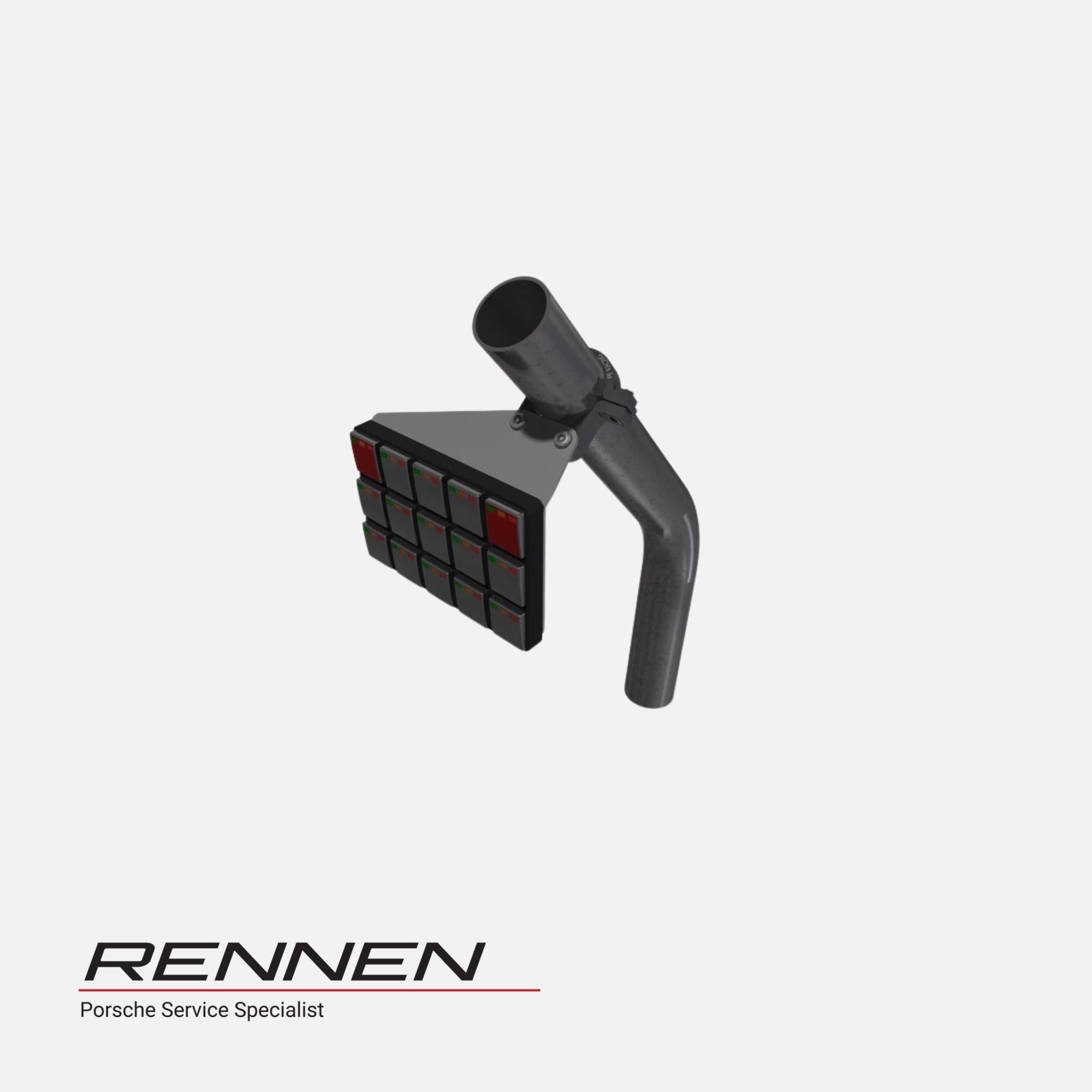

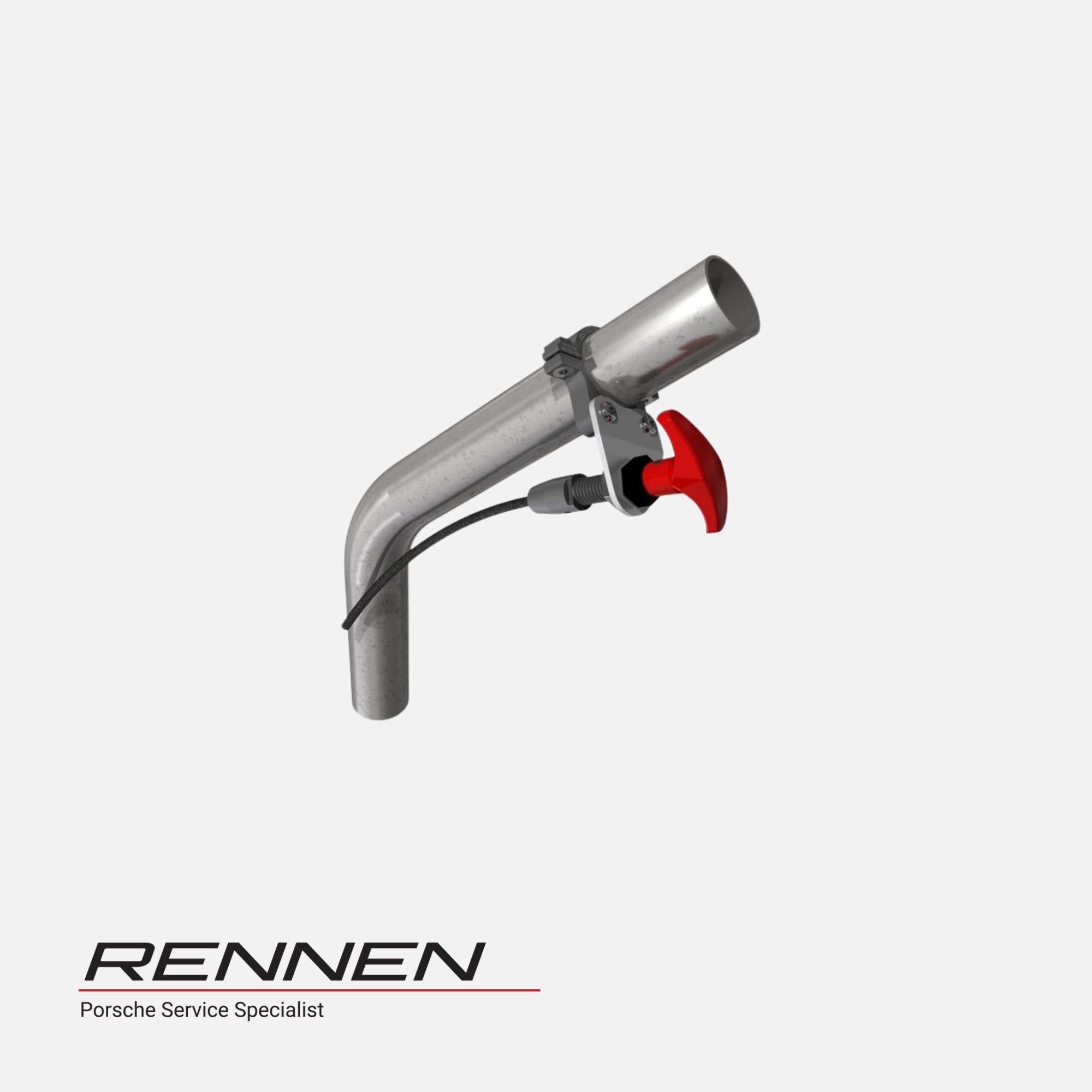

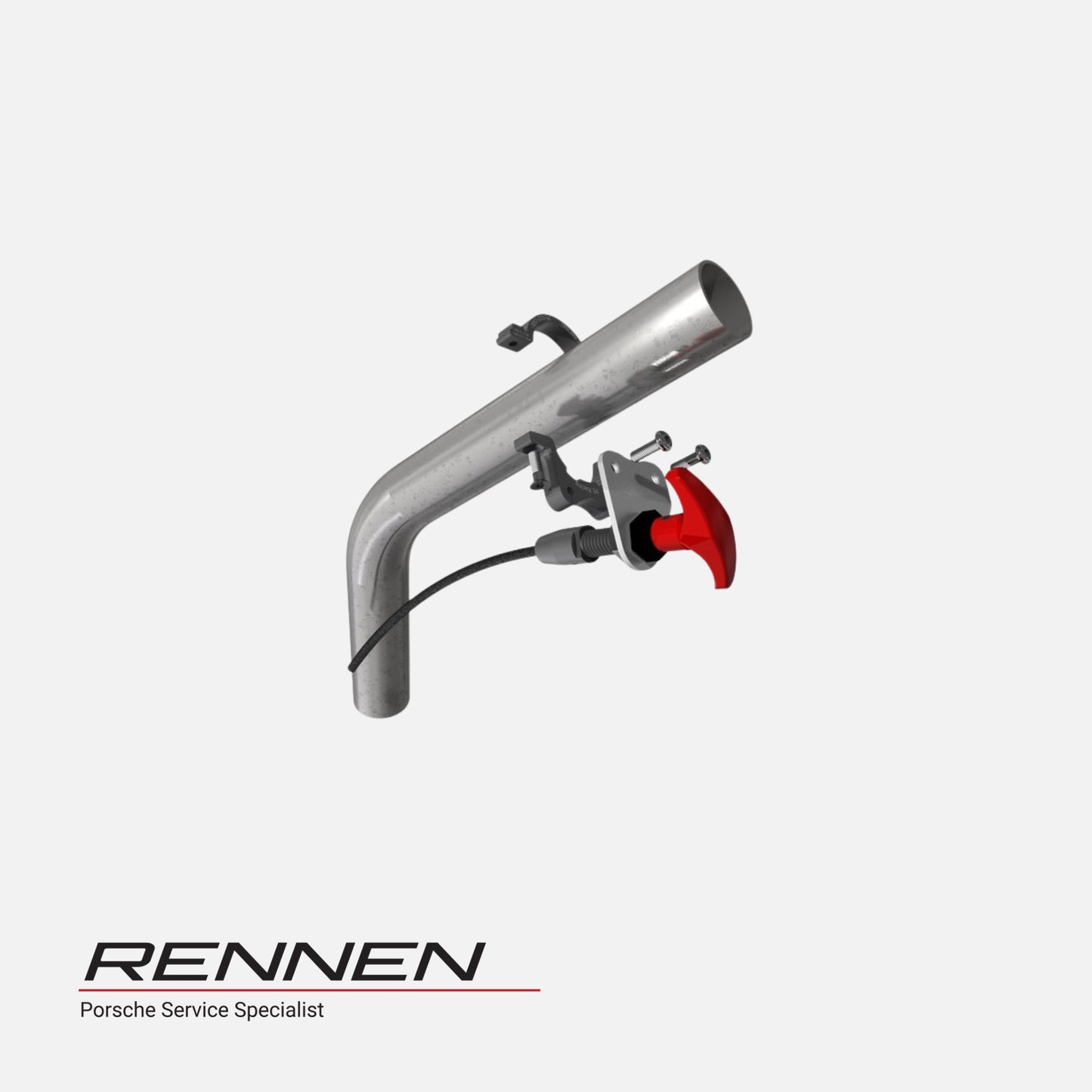

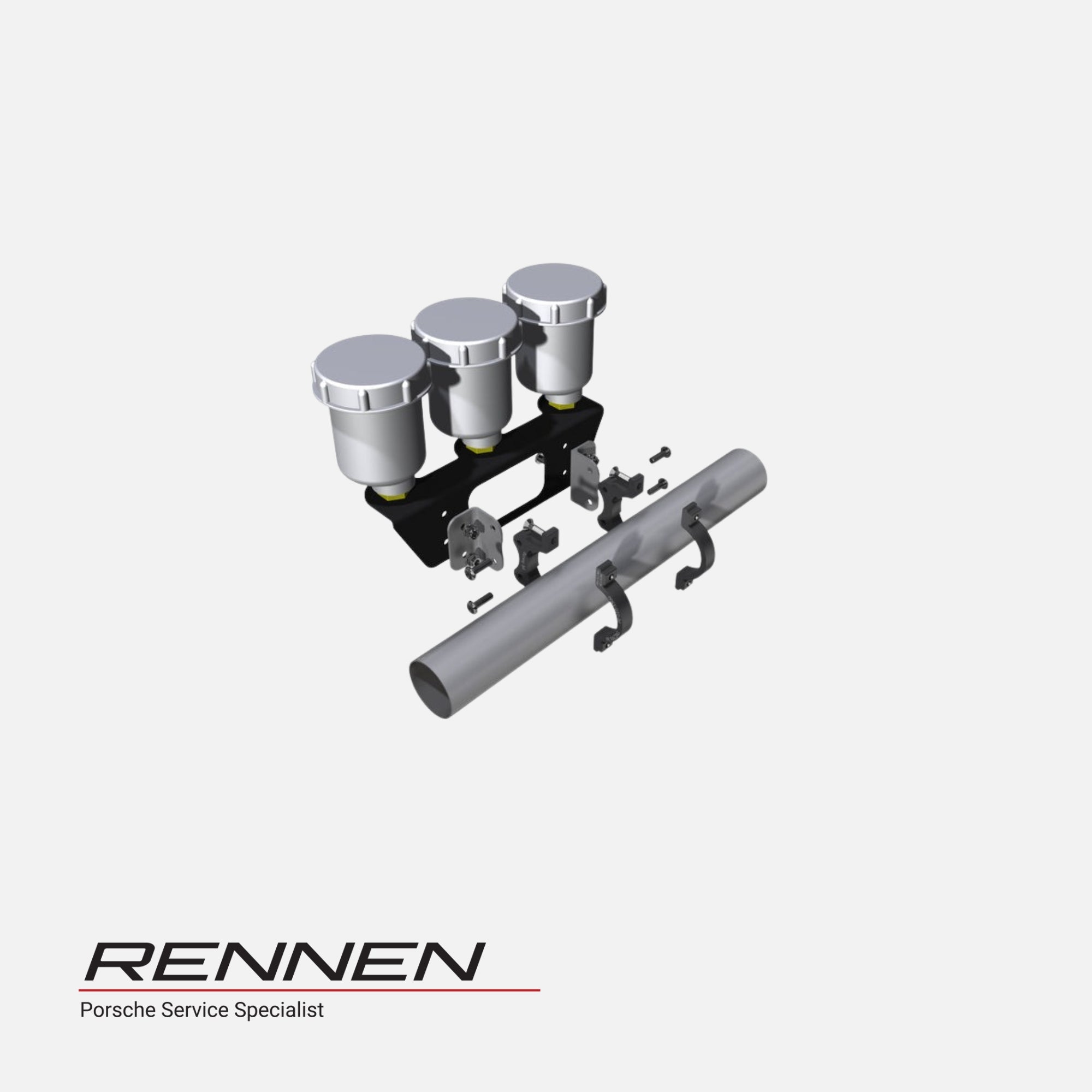

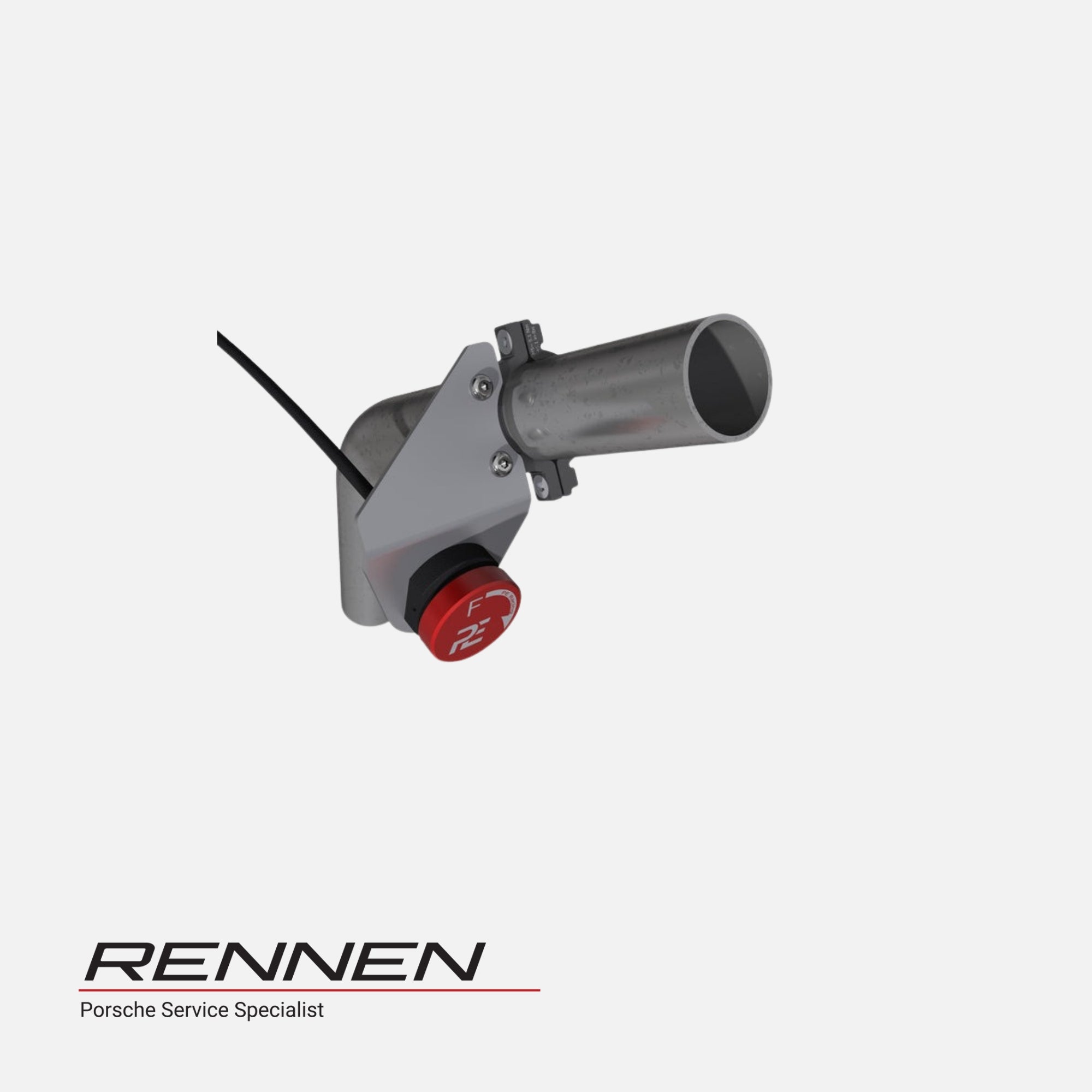

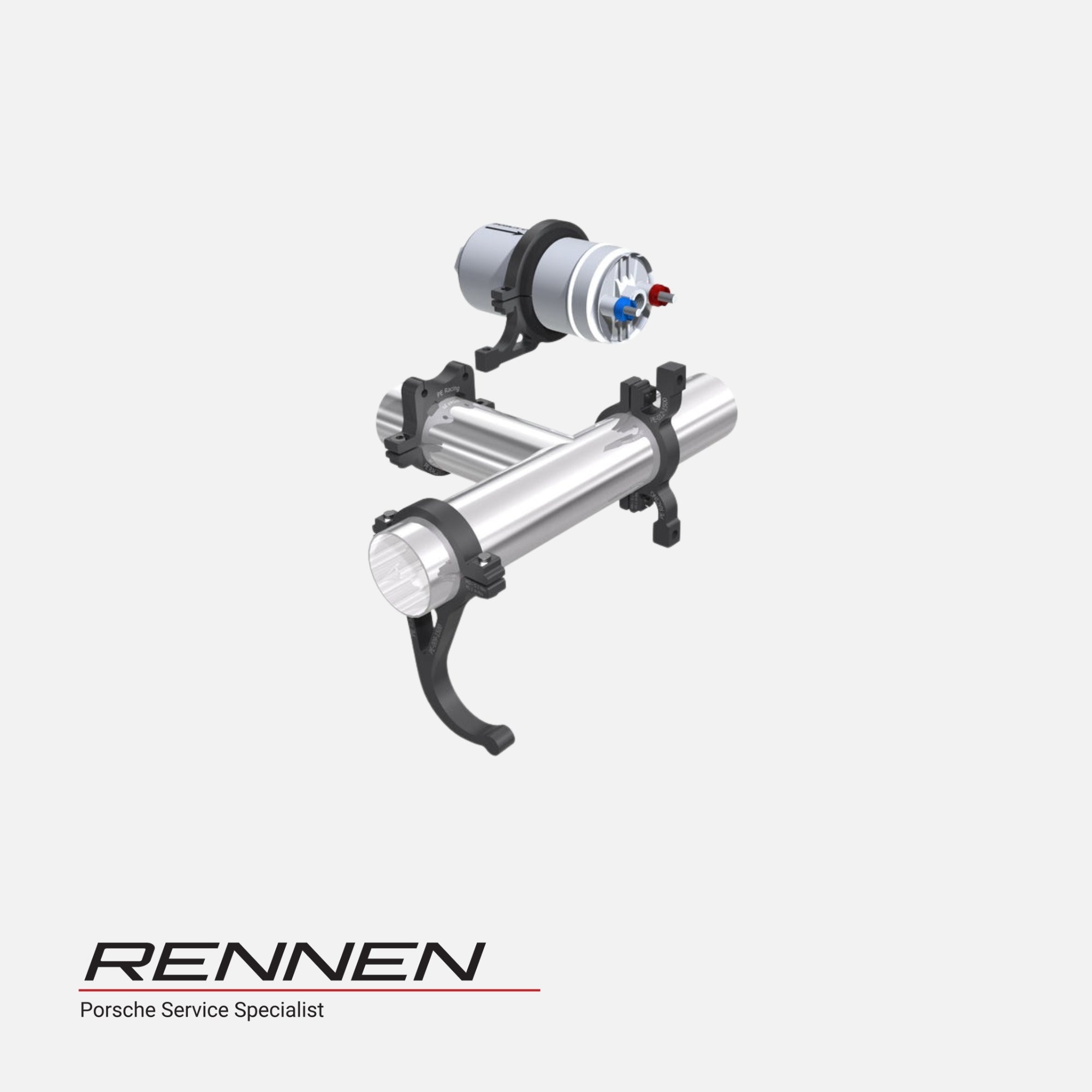

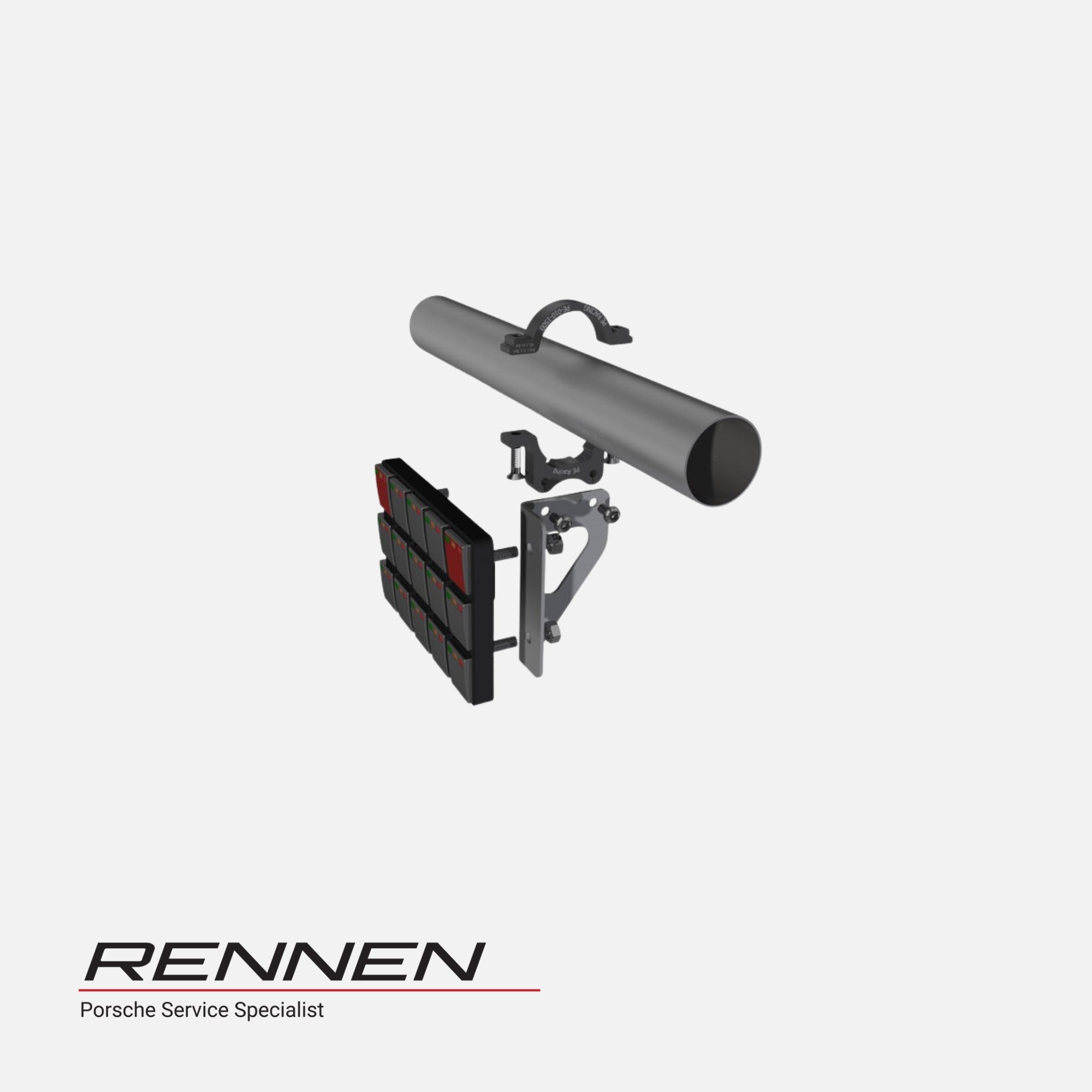

The PE Racing Clamps are designed to make mounting products and accessories faster, easier, and more reliable. While originally engineered for motorsport applications, their versatility makes them suitable for countless other uses where strong and secure tube mounting is required.

Available in a wide range of sizes and four clamp styles, these precision-engineered clamps are built to withstand up to 10G dynamic loads of 5 kg or static loads of 50 kg per clamp. For applications requiring extra stability, an optional vibration insulator is available to dampen vibration effects (note: adding the insulator reduces the clamp size by one increment, except in the PE-11 range, which always includes the insulator).

Constructed from aircraft-grade alloy and finished with hard anodising, PE Clamps are designed to perform in harsh environments while resisting corrosion and wear.

Available Sizes:

1" ϕ

1.25" ϕ

1.5" ϕ

1.625" ϕ

1.75" ϕ

1.875" ϕ

2" ϕ

Key Features:

Wide variety of sizes and styles

Hard-anodised finish for superior corrosion resistance

Eliminates the need for welding—preserves material strength

Compact design saves storage space

Easy to mount and dismount for quick access

Optional vibration insulator for added stability

Cost-effective, high-quality construction

Customisable for additional mounting solutions
