Tube to Panel Mounting Bracket Clamp PE-012 range

Award-winning PE Clamps

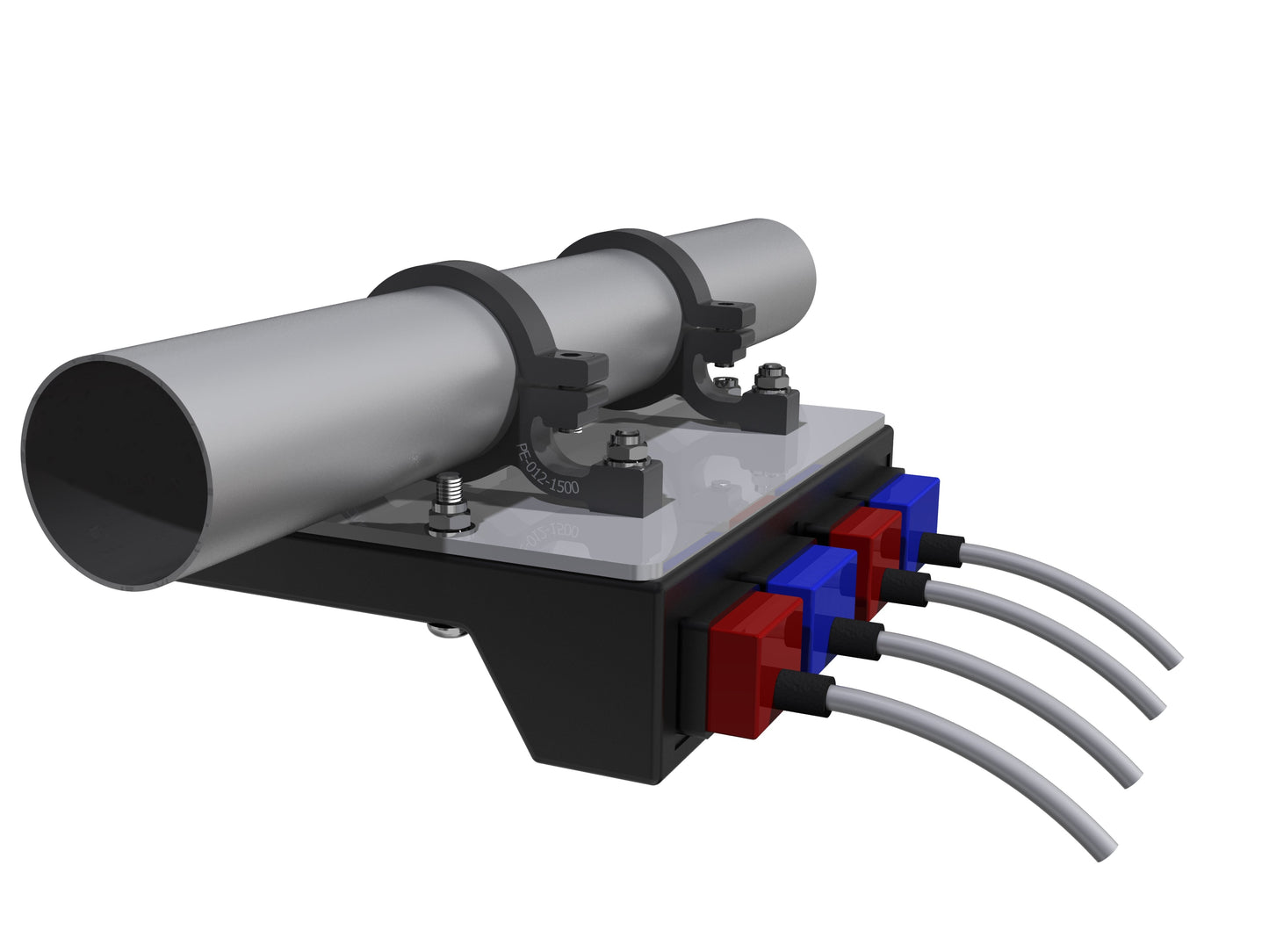

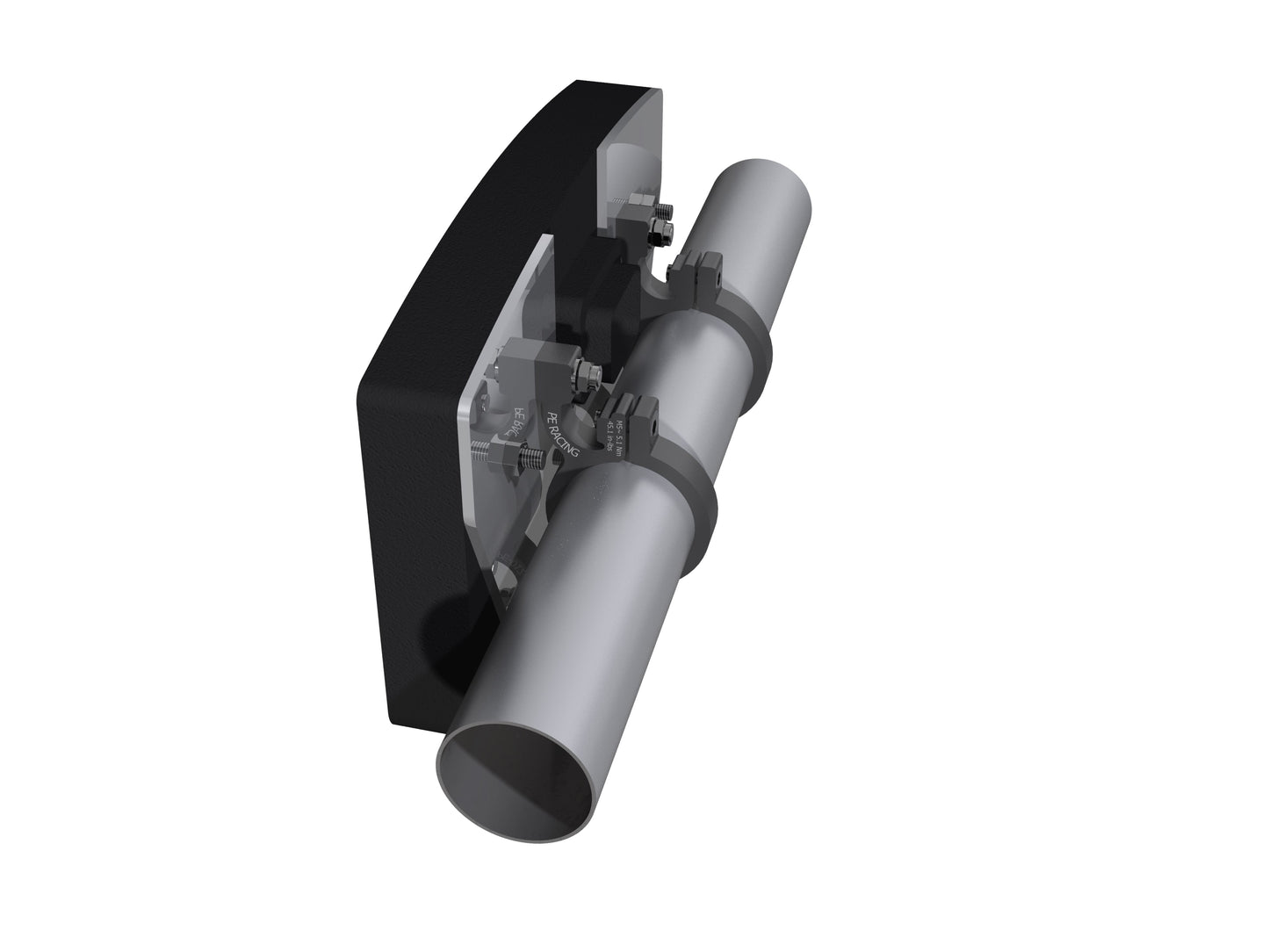

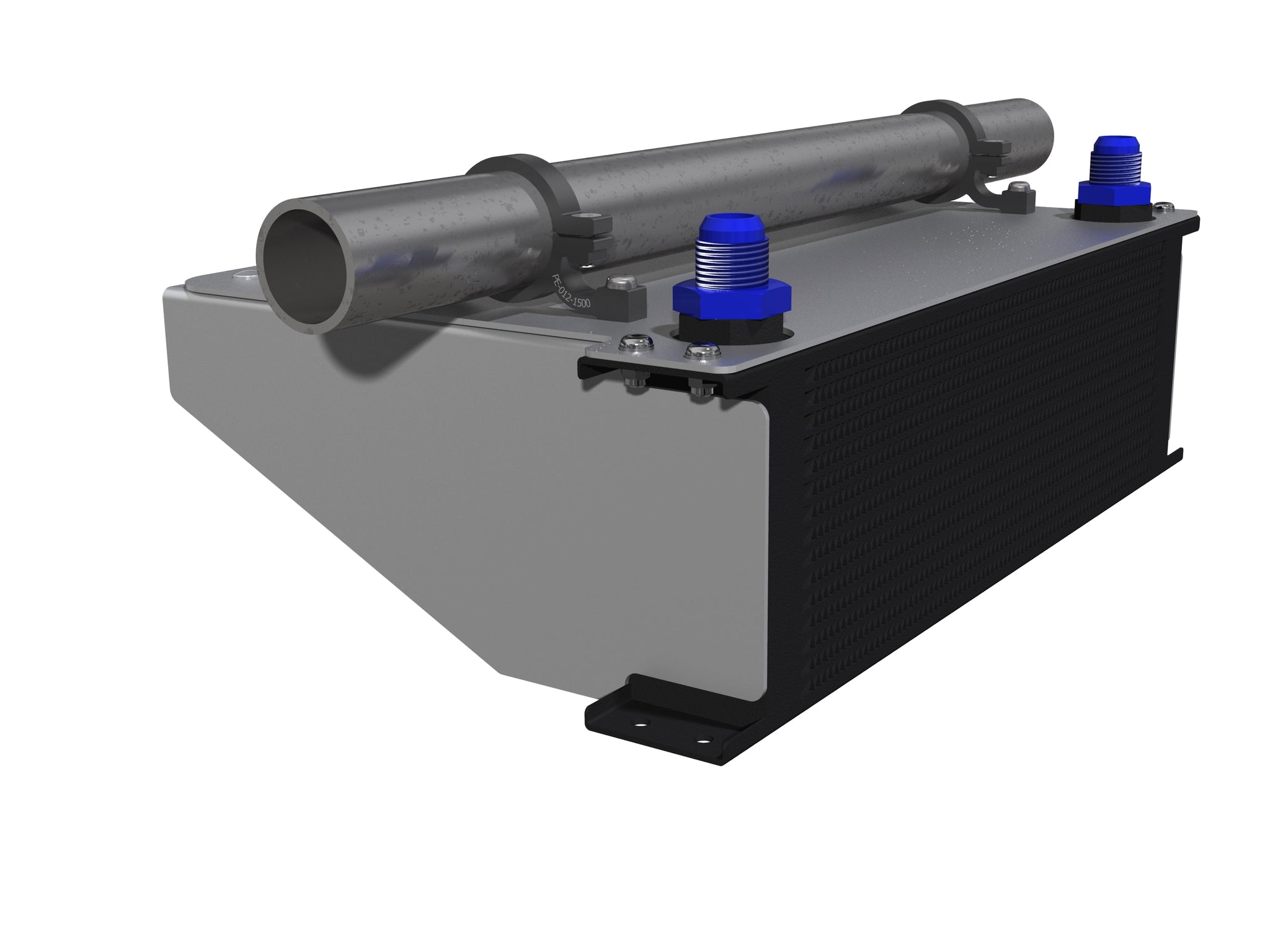

PE Tube to Panel mounting clamp is designed to fit tightly around a range of tube sizes, providing you with an easy installation experience.

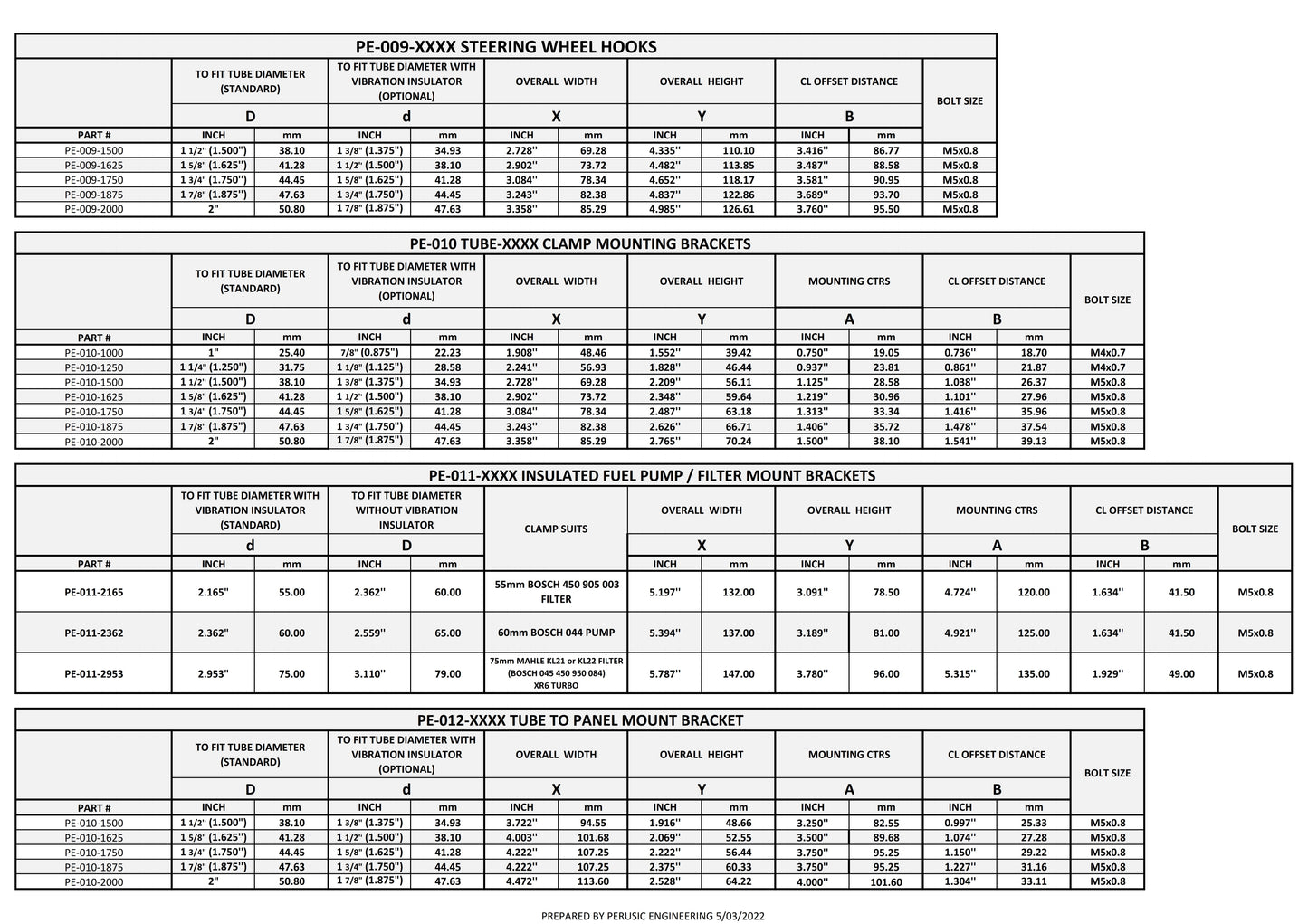

Available Sizes:
1.5″ Ø
1.625″ Ø
1.75″ Ø
1.875″ Ø
2″ Ø

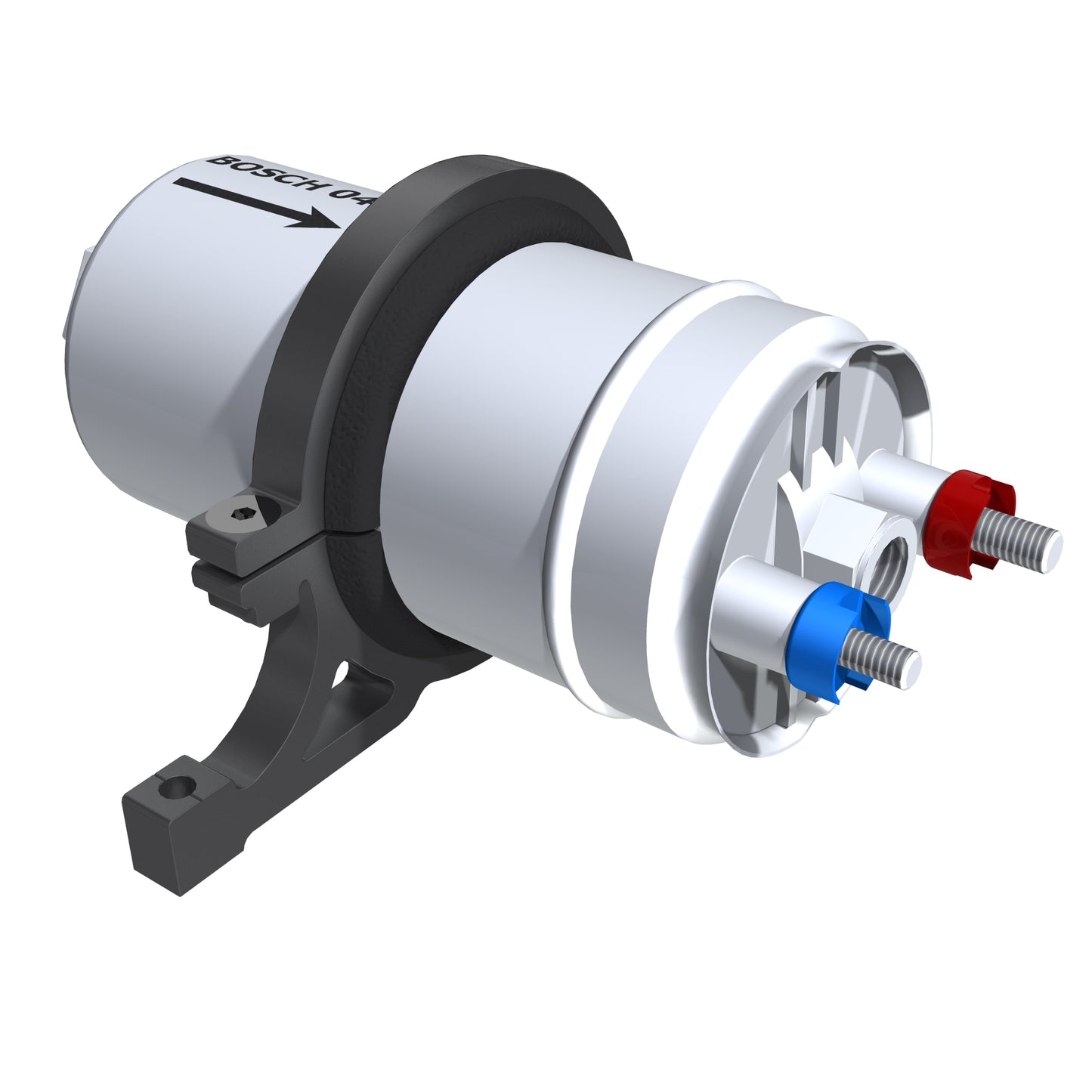

PE clamps come in four different styles and a variety of sizes to satisfy a wide range of tube mounting needs. Engineered to withstand a 10G dynamic load of 5 kg or a static load of 50 kg per clamp. The clamps have an optional vibration insulator that dampens vibration effects (NOTE: Adding the vibration insulator makes the clamp suit the next size down, except for the PE-11 range which is designed to always come with the vibration insulator). They are made of aircraft alloy with a hard anodised finish to resist the effects of harsh environments.

* Prices are excluding GST

Features

• Variety of sizes
• Safe
• Hard anodised metal resists a highly corrosive environment
• Eliminates the need for welding, thus sustaining the strength of the material.
• Consumes less storage space
• Temporary
• Affordable
• High-Quality Material
• Faster Mounting, easy access for mounting and dismounting
• Easy to customise. Add your own products to the PE Clamps.
